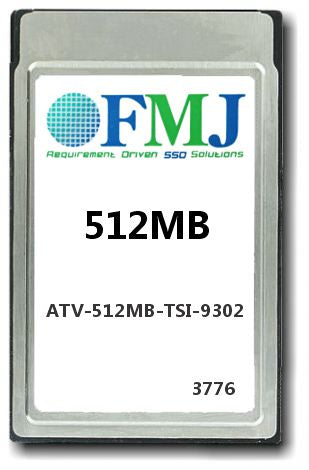

FMJ Honeywell Spec 9302 ATA Flash PC Card

The FMJ 9302 Series Honeywell Industrial ATA PCMCIA PC Card

If you have EGPWS model MK V/MK VII, you will need FMJ Linear Flash Card Part number LFC-64MB-20C-9302 (300-1079-021)

If you have EGPWS model MK VI/VIII/XXII you will need ATA PCMCIA Flash Card FMJ Part Number ATV-128MB-TSI-9302 (300-1126-037) or ATV-256MB-TSI-9302 (300-1126-038) depending on what size of card you want.

Select capacity
SKU: ATV-128MB-TSI-9302
$336.00
Shipping calculated at checkout.

9302 Honeywell Spec

• ATA-3 compliant

• ATA and True IDE Mode Support

• Supports PIO modes 0-4 and multi-word DMA modes 0-2

• Supports Dual Voltage 3.3V or 5V Interface, Low

• Power Consumption

• Built n 4 symbol Reed Solomon ECC engine detects and corrects errors

• Sophisticated block management and wear leveling algorithms dramatically enhance flash memory endurance

• Supports both 8-bit and 16-bit data register transfers

• High Shock and Vibration Tolerances

• ECC Engine for high data integrity

• Wear Leveling and Block Management

• Wide Operating Temperature Range

• RoHS 6 of 6 compliant

• 4,000,000 Hours MTBF

• High Data Reliability

• Power-down protection

• RoHs Compliant

• TAA Compliant

• Made in America

Operating Modes

  • PC card memory mode
  • PC card I/O mode
  • True IDE mode


Data Transfer Rates

  • Data Transfer Rate to and from host: 16.7MB/Sec. burst (theoretical)
  • Read: up to 8MB/sec in ATA PIO mode 4
  • Write: up to 6MB/sec in ATA PIO mode 4
  • Read/Write unit is 512-byte sequential access
  • Reset to Ready (max): 400ms
  • Command to DRQ: 400ms
  • On card ECC up to 6 Bytes per 512 Byte data sector


Physical Dimensions

  • PCMCIA Type II Enclosure: 85.6mm x 54.0mm x 5.0mm (LWH)
  • Weight: 50g


Electrical Characteristics

  • Operational Voltage: 3.3 Volts ± 5% or 5 Volts ± 10%


Power Consumption 3.3 Volts

  • Read: 75 mA (Max.)
  • Write: 75 mA (Max.)
  • Sleep: 0.5mA (max.)


Power Consumption 5 Volts

  • Read: 100 mA (Max.)
  • Write: 100 mA (Max.)
  • Sleep: 1.0mA (max.)


Operating Environment

  • Temperature Operating: -40 to 85° C
  • Temperature Storage: -55 to 125° C
  • Humidity: 8% to 95% non-condensing
  • Vibration: 16.3gRMS, MIL-STD-810F, Method 514.5, Procedure I, Category 24
  • Shock: 1000G, Half-sine, 0.5ms Duration 50g Pk, MIL-STD-810F, Method 516.5, Procedure I
  • Altitude: 80,000ft, MIL-STD-810F, Method 500.4, Procedure II


Reliability

  • 6-bit ECC
  • MTBF (@ 25°C) > 4,000,000 Hours
  • Less than 1 Non-Recoverable Error in 1015 bits read
  • Data Retention: 10 Year


Certifications

  • CE, UL, FCC, RoHS
  • TAA Compliant
  • COO: USA


Operating System Support

  • Microsoft Windows 2000, XP, Server 2003, Vista, 7, 8, 10, 11
  • Microsoft Windows DOS, Window 3.x, NT, 95/98/98SE Millennium Edition
  • Unix and Unix-like systems including OpenBSD, FreeBSD, NetBSD, and Linux
  • Other systems including IBM OS2, FreeDOS, Application Specific OS, and many embedded operation systems
  • Apple Mac OS, Darwin, and Mac OS X

PCMCIA Product Manual
Specifications for this device

PCMCIA ATA Flash PC Card Memory Card Devices FAQ
FAQ, information and General PCMCIA ATA Flash issues

Data Retrieval
Is There Any Way to Retrieve Data From Damaged PCMCIA Memory Media Cards?

PCMCIA ATA Flash PC Card Memory Card Series Difference Chart
Information showing the differences in the various Synchrotech PCMCIA ATA Flash PC Card Memory Cards

*The advertised memory capacity of this device represents unformatted capacity. Please note that once formatted and due to variations in flash module block limitations, the functional storage space will be lower than the advertised capacity.

1 Year Limited Warranty
