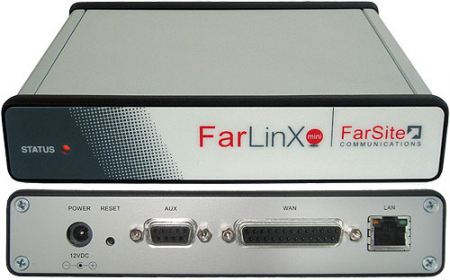

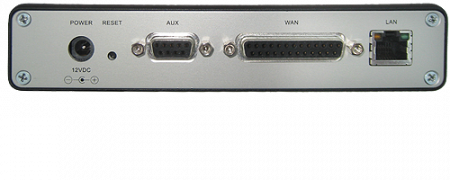

F-FL2751N FarLinX Connect Mini HDLC Bridge and TCP to HDLC Converter

Farsite FL2751N

The FarLinX Connect Mini is a multi mode HDLC bridging appliance. HDLC lines can be bridged securely across the Internet or other TCP/IP networks also data from a HDLC/LAPB connection can be converted to be transmitted over a TCP connection.

All features are easy to securely manage from your browser. There are daily activity logs with a selectable level of detail, automatically archived on a daily basis. The SNMP support provides alerts for numerous different conditions including critical events such as line down and line up. A line monitor supplied permits analysis of the HDLC/LAPB line.



SKU: F-FL2751N
$1,932.00
Shipping calculated at checkout.

The FarLinX Connect Mini is a multi mode HDLC bridging appliance. HDLC lines can be bridged securely across the Internet or other TCP/IP networks also data from a HDLC/LAPB connection can be converted to be transmitted over a TCP connection.

All features are easy to securely manage from your browser. There are daily activity logs with a selectable level of detail, automatically archived on a daily basis. The SNMP support provides alerts for numerous different conditions including critical events such as line down and line up. A line monitor supplied permits analysis of the HDLC/LAPB line.

Features

  • TCP to HDLC conversion with the route created statically or dynamically, handles a variety of modes including: character streaming and frame length defined
    HDLC ↔ Internet ↔ HDLC bridging including static or dynamic routing
  • LAN accessible HDLC/LAPB line as a sharable remotely manageable resource
  • Choice of HDLC/LAPB network interface connections: RS232 (V.24), V.35, RS422, RS530, RS449, X.21, RS485
  • HDLC line speeds up to 1 Mbps and over 1,200 frames per second each way
  • Line Monitor to view HDLC traffic for easy network problem diagnosis
  • Browser graphical configuration, SNMP alerts for critical events and activity logging
  • Real time display of current connections, line performance, errors, connections and much more
  • Small rugged low profile all metal case, low power consumption

FL2751N Data Sheet

FL2751N Data Sheet

FarSync Network Connection Cables - Compatibility Matrix

FarSync five year limited warranty
