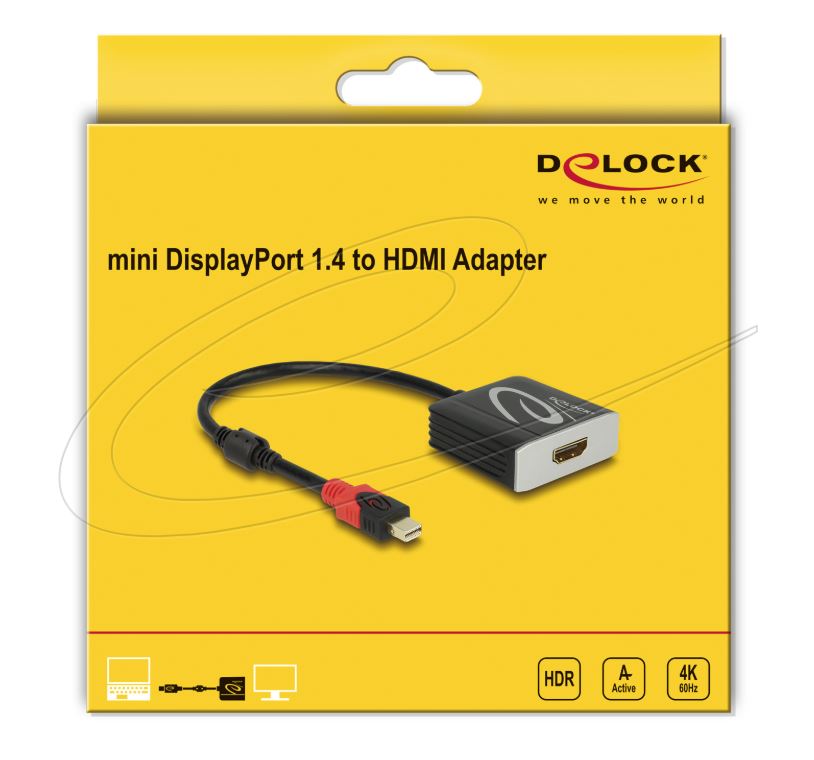

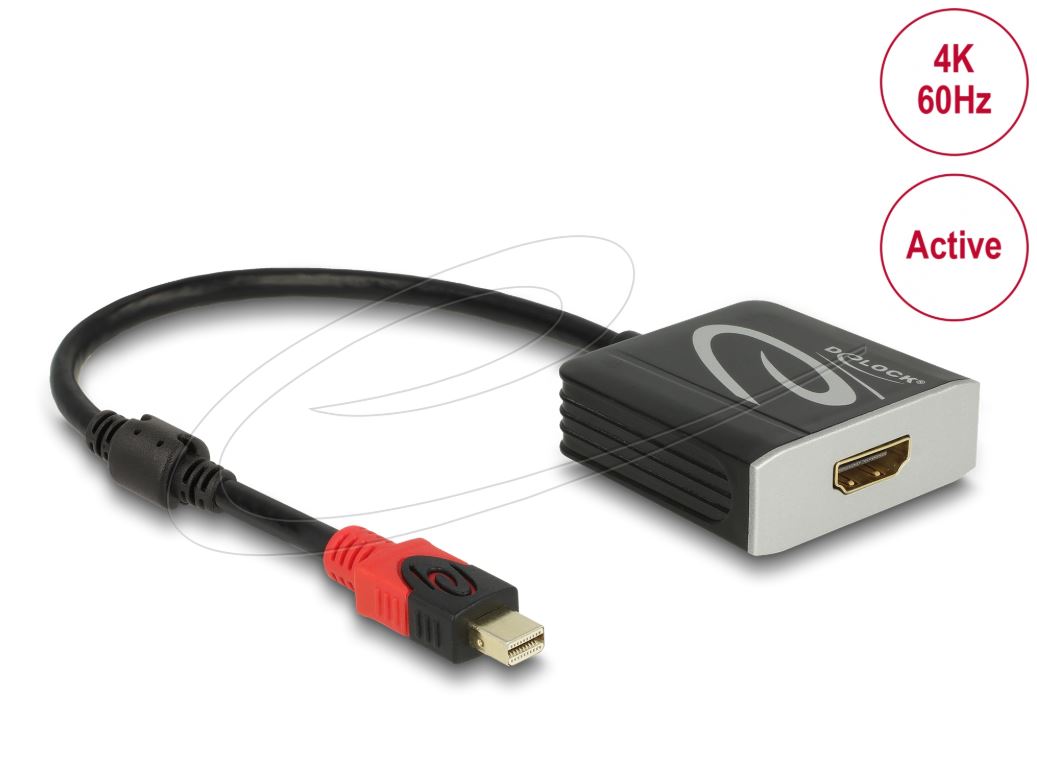

Delock 65302 | Delock Active mini DisplayPort 1.4 to HDMI Adapter 4K 60 Hz (HDR)

With this adapter from Delock, connect an HDMI Monitor via a free mini DisplayPort. The adapter supports resolutions up to 4K Ultra HD at 60 Hz and is backward compatible with Full HD 1080p.

The adapter offers active conversion, making it suitable for graphics cards that cannot output DP++ signals.



SKU: DLCK-65302
$54.00
Shipping calculated at checkout.

With this adapter from Delock, connect an HDMI Monitor via a free mini DisplayPort. The adapter supports resolutions up to 4K Ultra HD at 60 Hz and is backward compatible with Full HD 1080p.

The adapter offers active conversion, making it suitable for graphics cards that cannot output DP++ signals.

  • Connectors:
      1 x mini DisplayPort male >
      1 x HDMI-A female
  • Chipset: Parade PS186
  • DisplayPort 1.4 and High Speed ​​HDMI specification
  • Active converter, for graphics cards with DP and DP++ output
  • Signal direction: mini DisplayPort input > HDMI output
  • Wire cross-section:
      32 AWG data line
      28 AWG power line
  • Cable diameter: approx. 5 mm
  • Connectors: gold-plated
  • Transmission of audio and video signals
  • Data transfer rate up to 18 Gbps
  • Resolution up to 3840 x 2160 @ 60 Hz
      (depending on the system and the connected hardware)
  • Supports HDR
  • Supports HDCP1.4 and 2.3
  • 1 x ferrite core
  • Cable length without connectors: approx. 20 cm
  • Color: black

Specification

  • DisplayPort 1.4
  • HDCP 1.4
  • HDCP 2.3
  • HDMI 2.0
  • HDR


Interface

Connection 1

  • 1 x mini DisplayPort connector

Connection 2

  • 1 x HDMI-A socket


Technical features

Chipset

  • Parade PS186

Data transfer rate

  • 18 Gbps

Maximum image resolution

  • 3840 x 2160 @ 60 Hz


Physical properties

Ferrite core

  • 1 x


Cable length

  • 20 cm


Contact finishing

  • gold-plated


Conductor cross-section

  • 32 AWG data cable
  • 28 AWG power cable


Color

  • gray
  • black


Cable diameter

  • 5 mm

1 Year Limited Warranty
